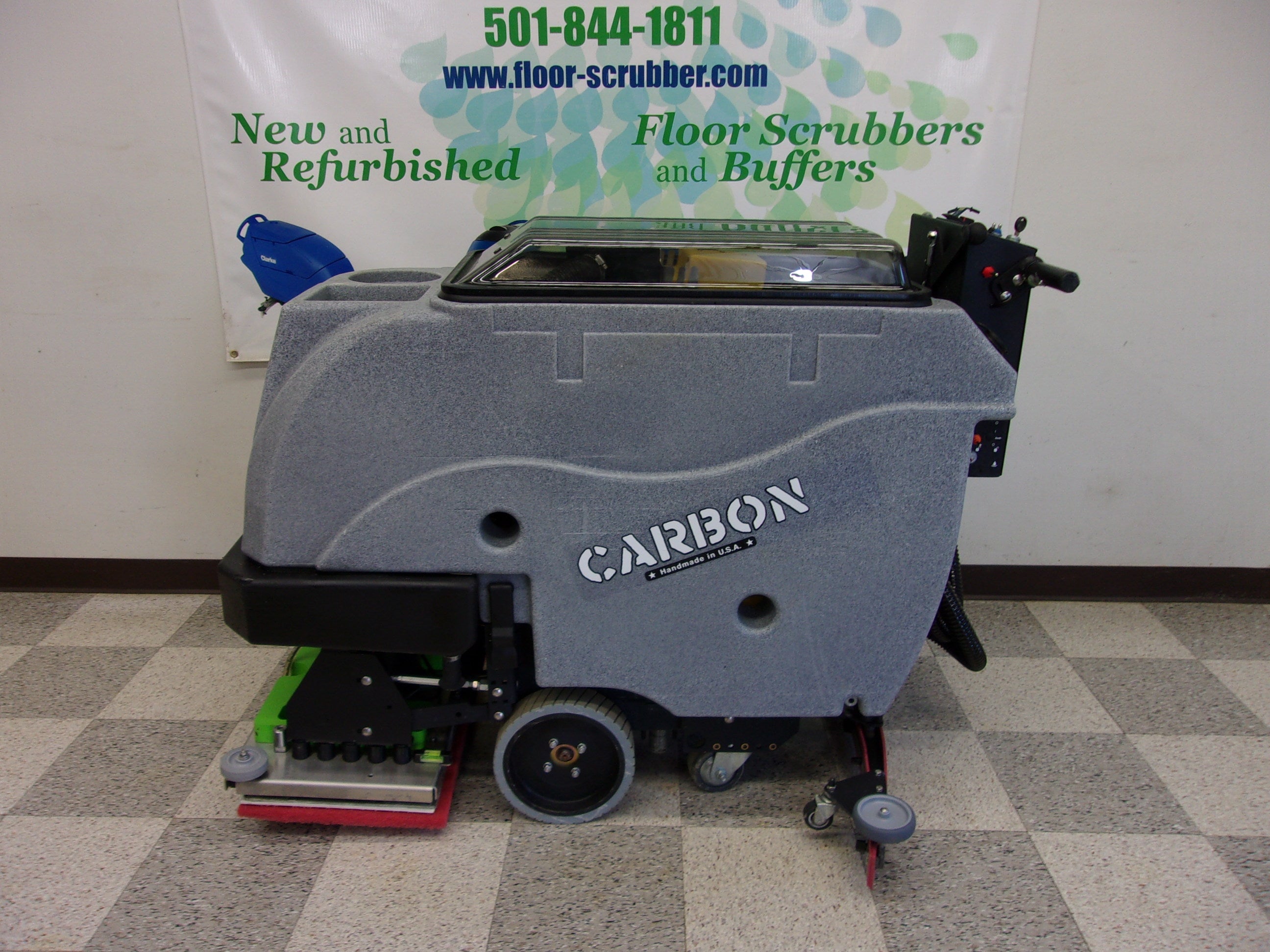

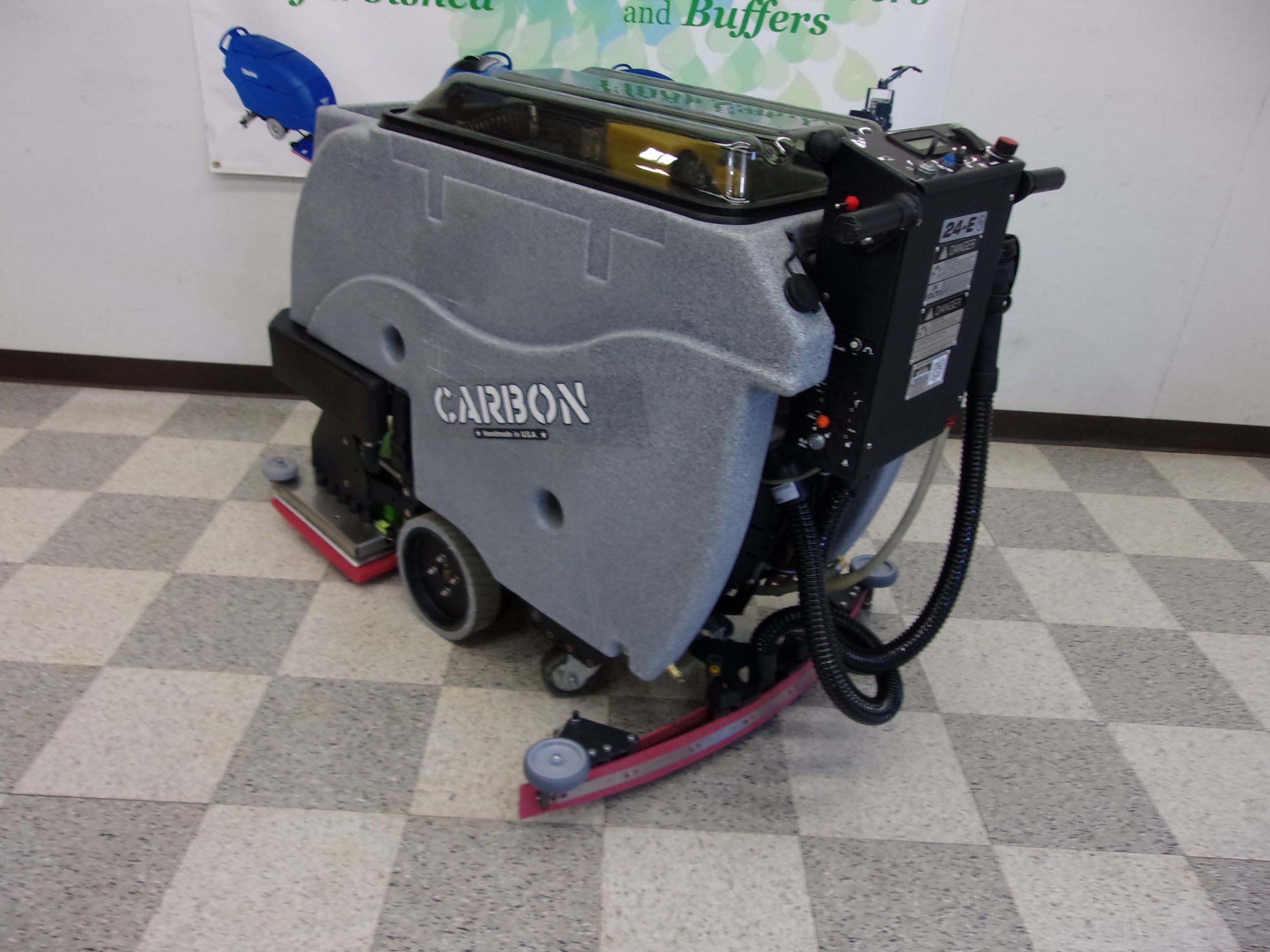

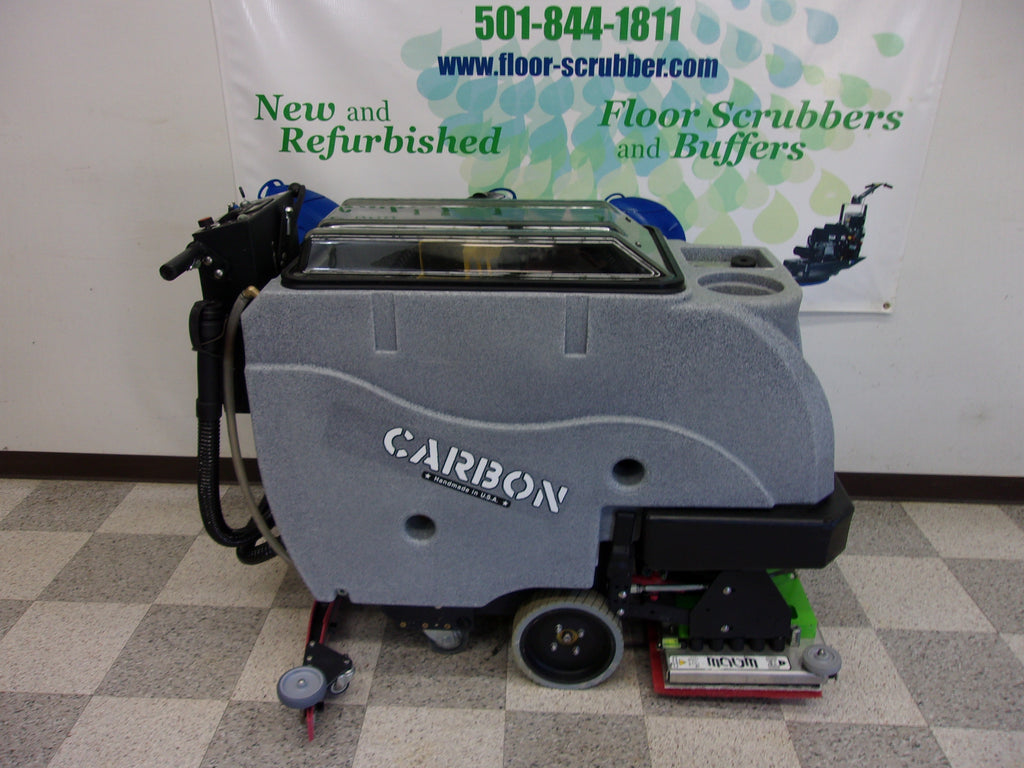

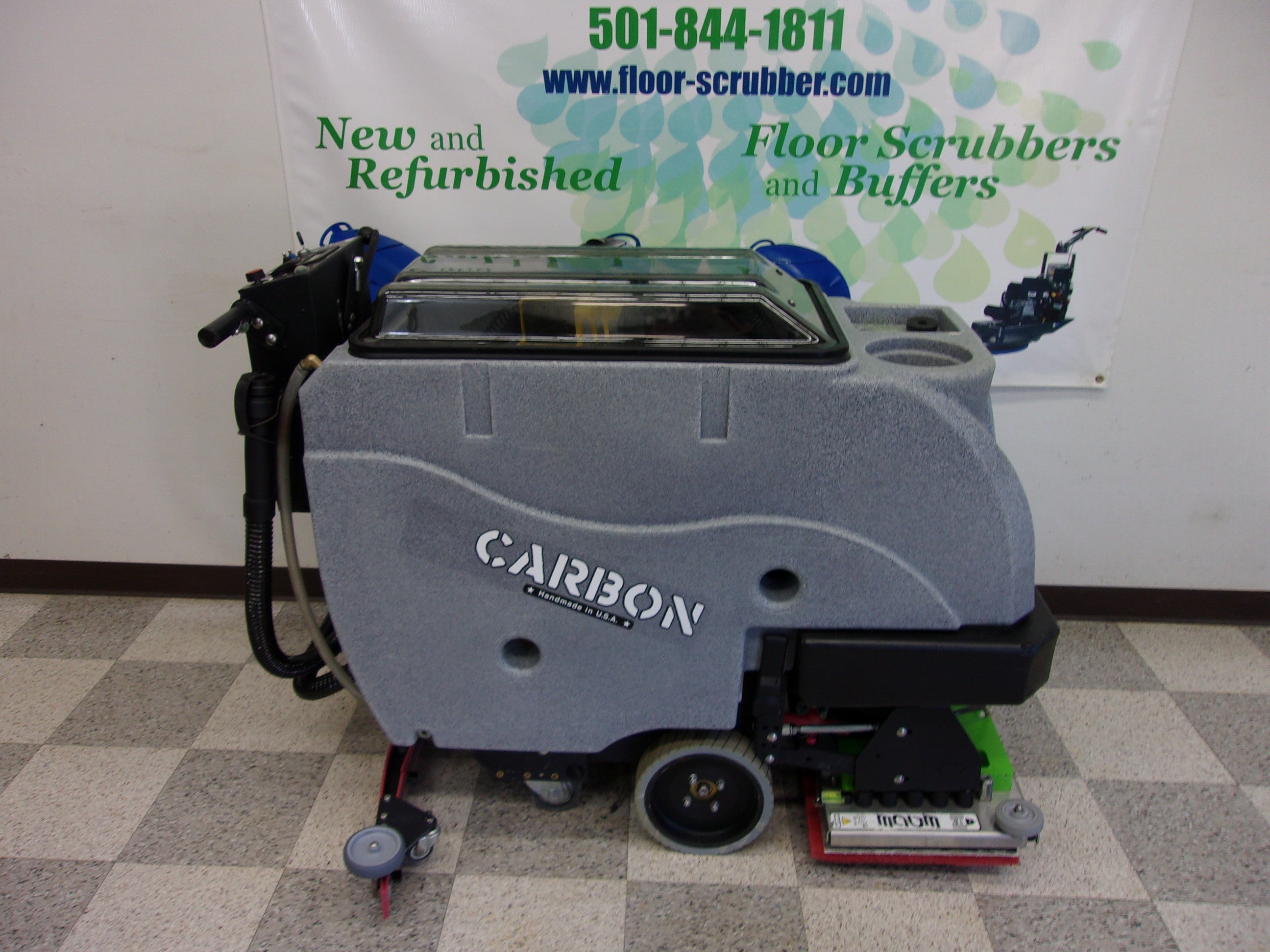

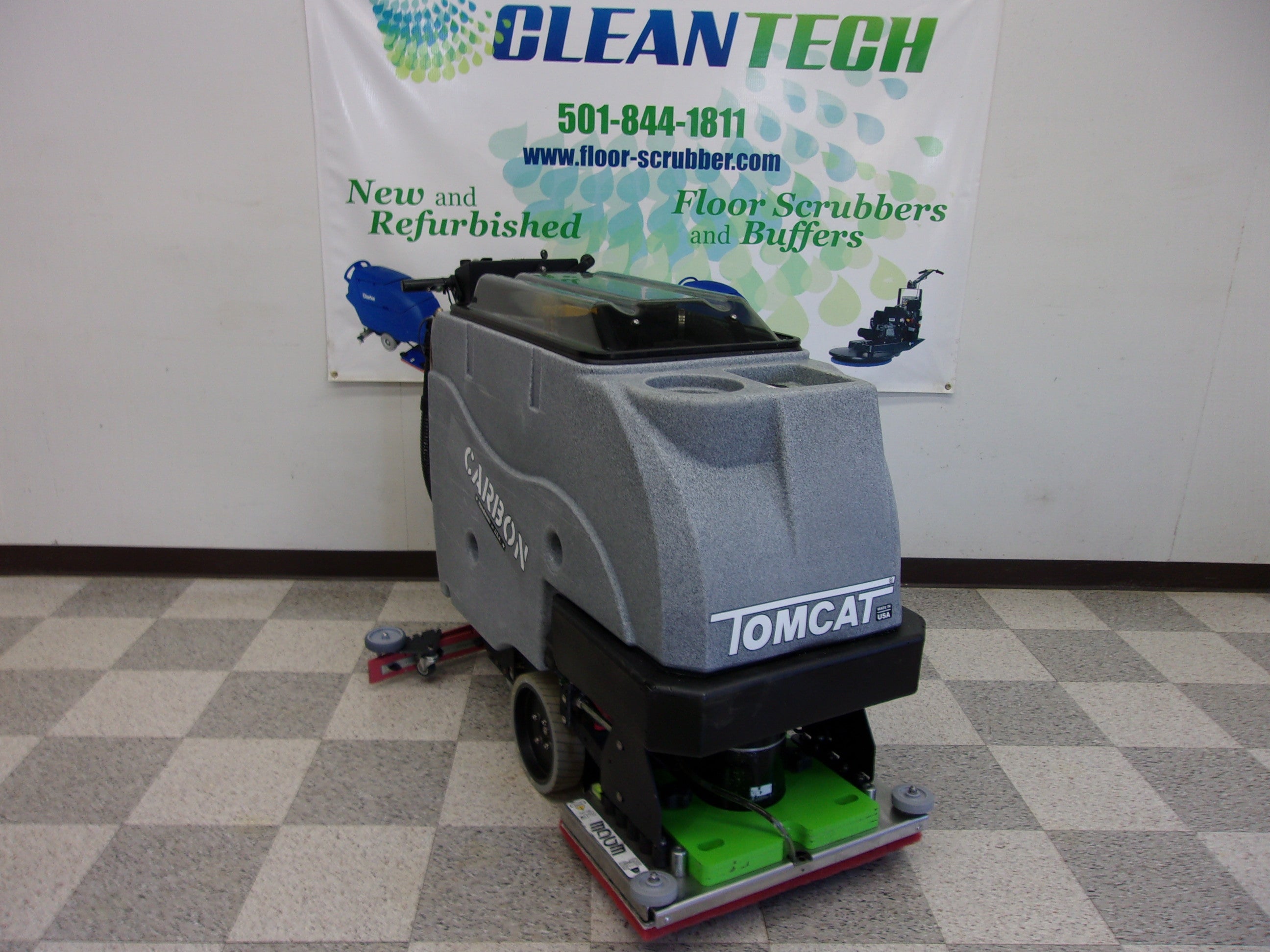

Tomcat Carbon E-24 EDGE Orbital Floor Scrubber Low Hour

 Reconditioned Tomcat Carbon E-24 Floor Scrubber 24"

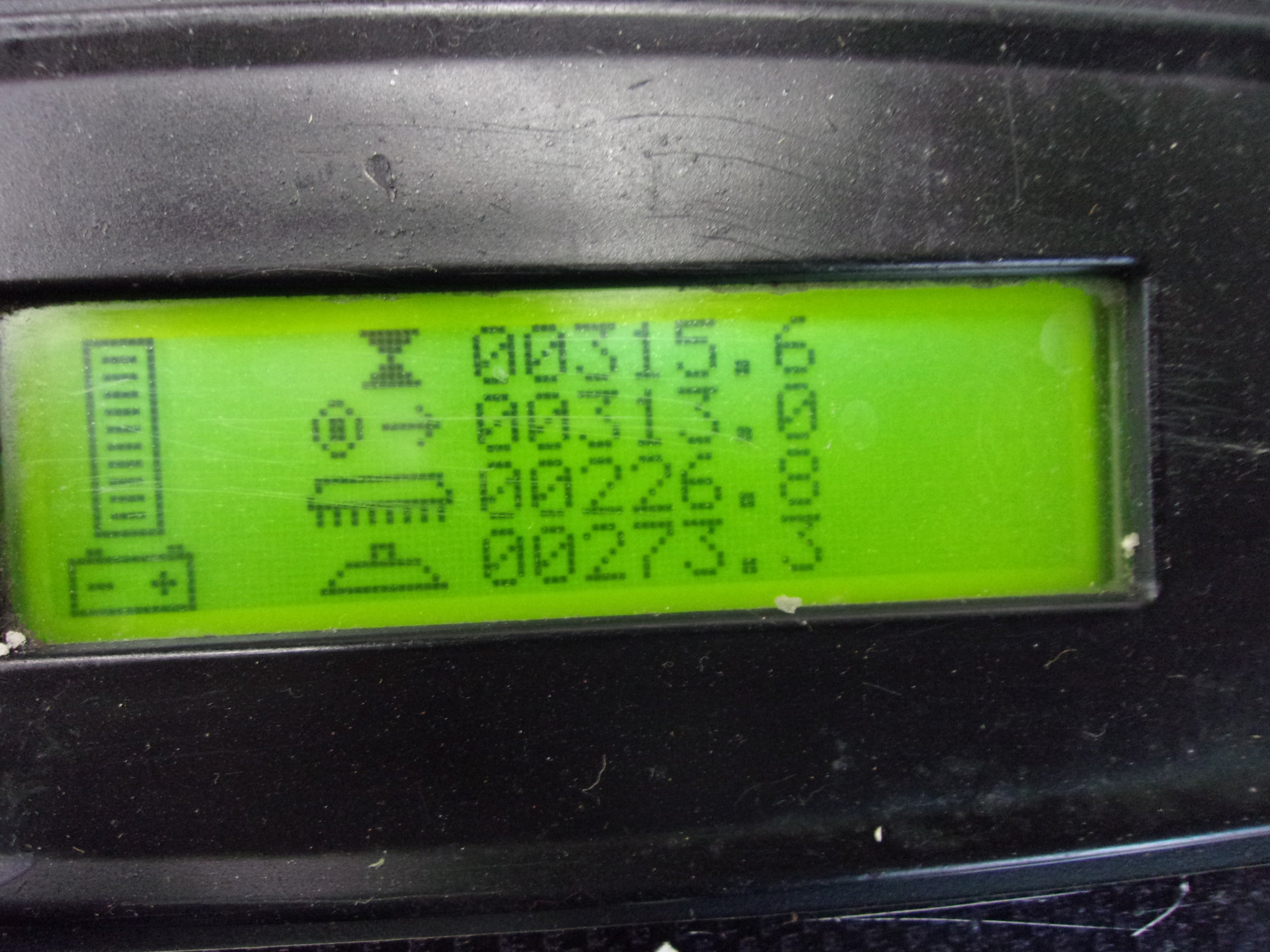

224 Hours
Comes with new batteries and charger.

Free Shipping to the lower 48 states.

Tomcat's CARBON Floor Scrubber Dryer is known for its simple design and durable construction, offering unmatched value for the customer. The CARBON Floor Scrubber Dryer comes equipped with a Traction drive which includes a powerful all-gear transaxle for climbing ramps and max operator ease.

While keeping with the constant durability that Tomcat machines have to offer, your operators will find the CARBON Floor Scrubber Dryer easy to maneuver into tight areas, and simple to service. The deck is protected by steel guards and large polyurethane rollers to keep the unit from marking walls.

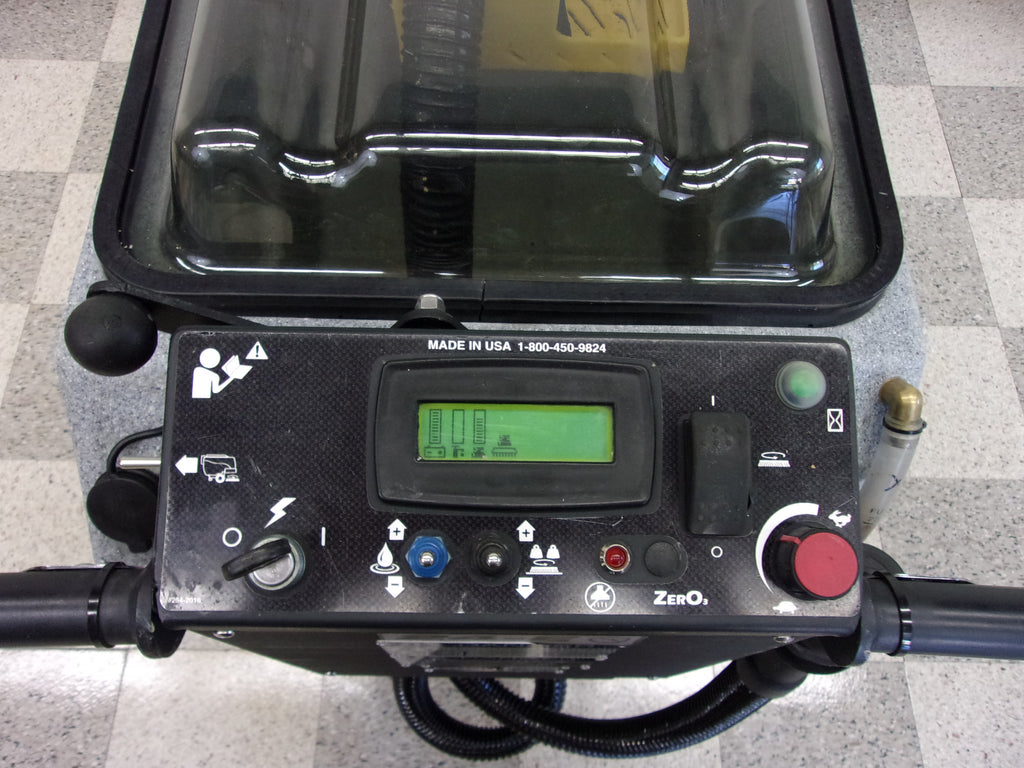

Machine Control Panel uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.

Vacuum Muffler allows the machine to consistently achieve as low as 62 dB while thoroughly drying the floor.

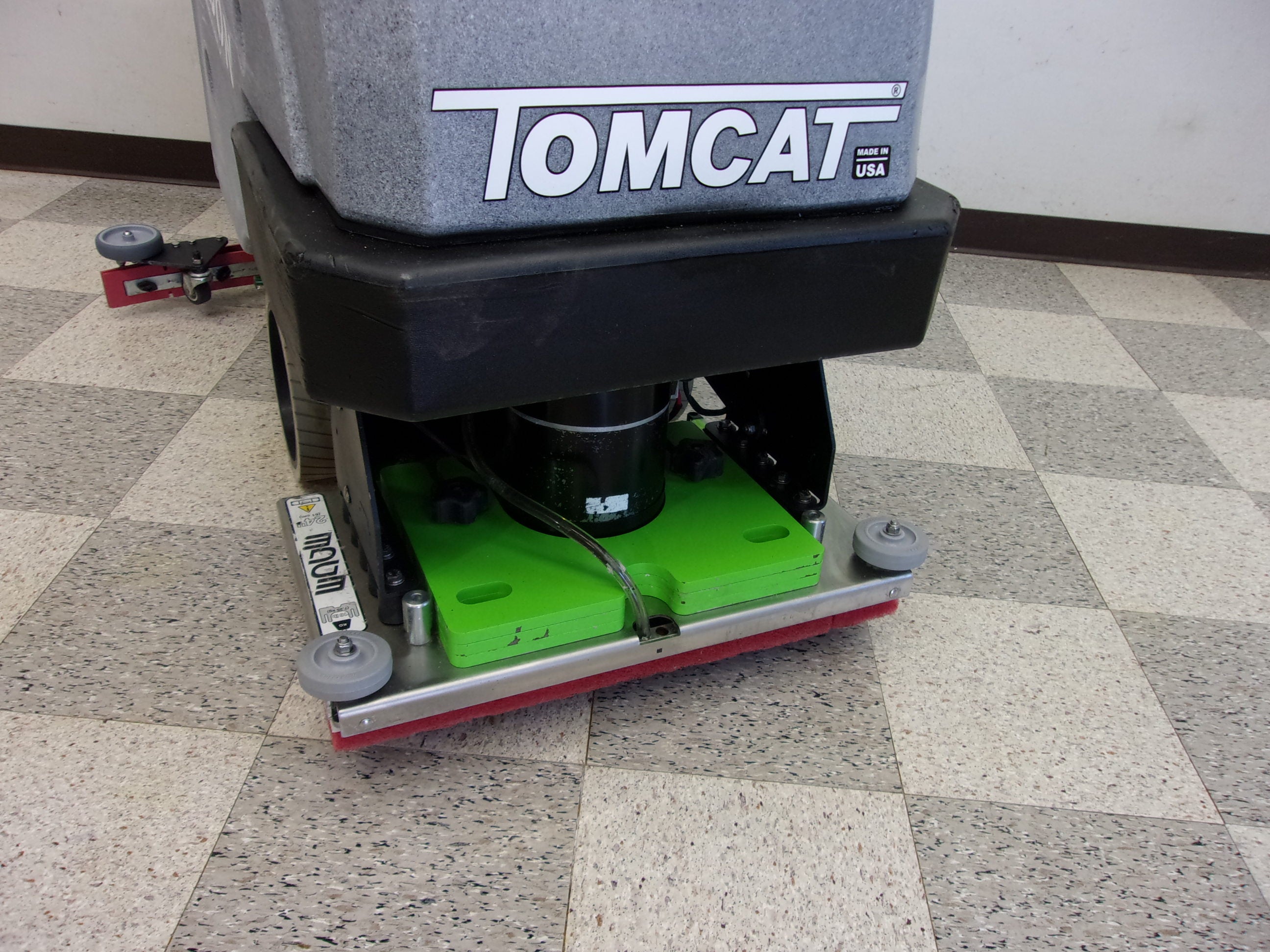

EDGE Orbital Scrub head delivers premier chemical-free floor stripping while reducing water consumption by up to 70%.

Squeegee Adjustments made simple with quick change squeegee latch allows toolless maintenance and 4-sided squeegee blade

Front Fill System features a retractable hose for easy filling on standard sink-faucets and a stainless screen for bucket filling.

Oversized Vacuum Screen Shut-Off quickly arrests overfill issues to protect the Vacuum Motor.

High Performance motors and down pressure provides an unmatched standard of cleaning.


SPECS:

Tank Material: Poly 3/8'' (10 mm)

Chassis Construction: 3/16'' (5 mm) Powder Coated Steel

Front Wheels (Diameter × Width): (2×) 10'' × 2.5'' ([2×] 25 × 6 cm) - Non-Marking Solid Grey

Rear Casters (Diameter × Width): (2×) 4'' × 2'' ([2×] 10 × 5 cm) - Non-Marking Grey

Size (L × W × H): 52'' × 22'' × 40'' (132 × 56 × 102 cm)

Weight (w/o Batteries): 393 - 443 lbs (178 - 201 kg)


Weight (w/ 210 ah Batteries): 625 - 675 lbs (284 - 306 kg)

EDGE Dimensions: 24'' × 14'' (70 × 36 cm)

28'' × 14'' (71 × 36 cm)

EDGE Motor: 1.0 hp / 2500 rpm (746 watts)

Actuator Rating: 500 lbs (227 kg)

Brush Pressure Settings: (5) with Auto Adjust

Brush Down Pressure: Up to 175 lbs (79 kg)

System Voltage: 24 VDC

Standard Battery: 210 ah WET

Run Time:

**Run times are based on continuous scrubbing run times.

Up to 3.5 Hours**

Charger: 120VAC / 60 Hz Input - 24VDC / 25 amp Output
Drive:

Power: 0.75hp - All Gear / Sealed (559 watts)

Forward Speed: 0 - 290 ft/min / 0 - 3.3 mph (0 - 88 m/min / 0 - 5 km/h)

Scrubbing Speed: 0 - 229 ft/min / 0 - 2.6 mph (0 - 70 m/min / 0 - 4 km/h)

Reverse Speed: 0 - 202 ft/min / 0 - 2.3 mph (0 - 62 m/min / 0 - 4 km/h)

Solution Tanks:

Solution Tank Capacity: 16 Gallons (61 liters) - w/ Graduated Site Tube

XL Tank Option Solution Capacity: 21 Gallons (80 liters) - w/ Graduated Site Tube

Solution Flow / Filter: 0 - 0.7 GPM / Stainless Inline (0 - 2 LPM)

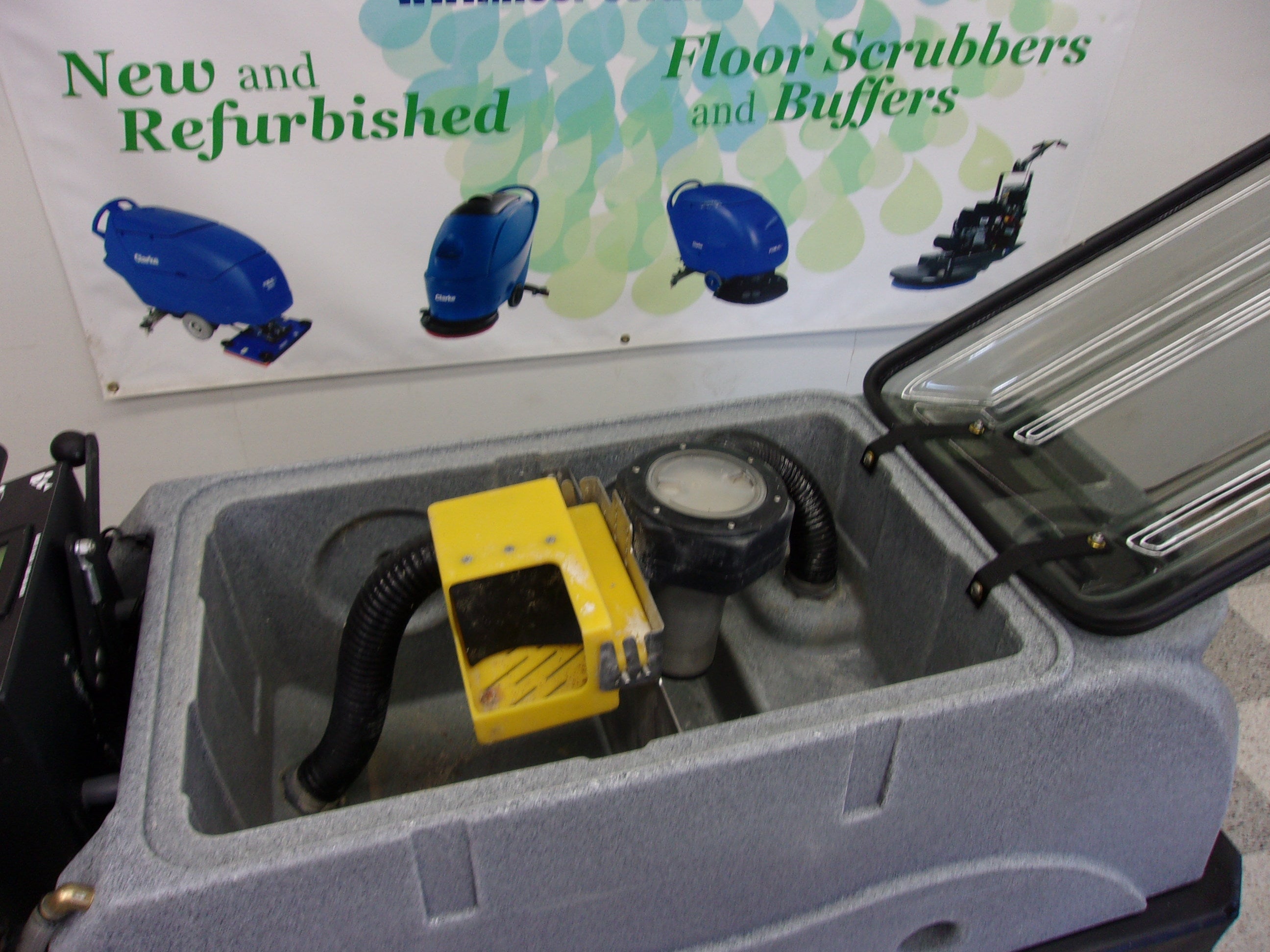

Recovery Tank Capacity: 17 Gallons (64 liters) - 1.5'' diameter Drain Hose

Demisting Chamber: 1.25 Gallons (5 liters)

Drain Saver: 30 cubic inches (492 cubic cm)

Vacuum Power: 0.8 hp / 3 Stage (640 watts)

Vacuum Specs (Water Lift / Airflow): 68'' / 72 cfm (173 cm / 2 cm/m)

Squeegee: 36'' Curved w/ 4-sided Rear Blade & Quick Change Latch



    Free Shipping to a commercial location with a forklift or a $100 residential delivery fee will apply. Unit can also be picked up at the local truck dock for no extra charge. Free shipping only to lower 48.

    Questions?  Call us today 501-844-1811.


    We can help out with any questions you may have. We have a 60-day parts warranty on all the refurbished machines we sell.  We can ship to a business with a loading dock or forklift; or we can have it shipped to a local trucking dock where you can pick it up.
