Tennant Nobles T500 T500e SS500 Squeegee Assembly Repair Rebuild Kit 32" 800

$ 289.00

Tennant Nobles
T500 T500e SS500 Squeegee Assembly
Repair Rebuild Kit
FOR 9021743, 9015303 Assemblies
32" 800
Squeegee Frame Must have 800 stamped on it

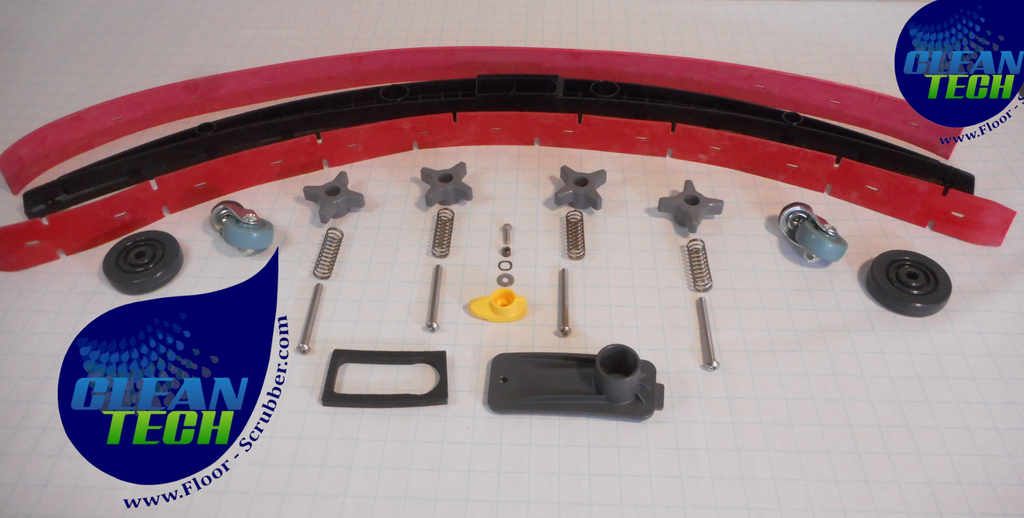

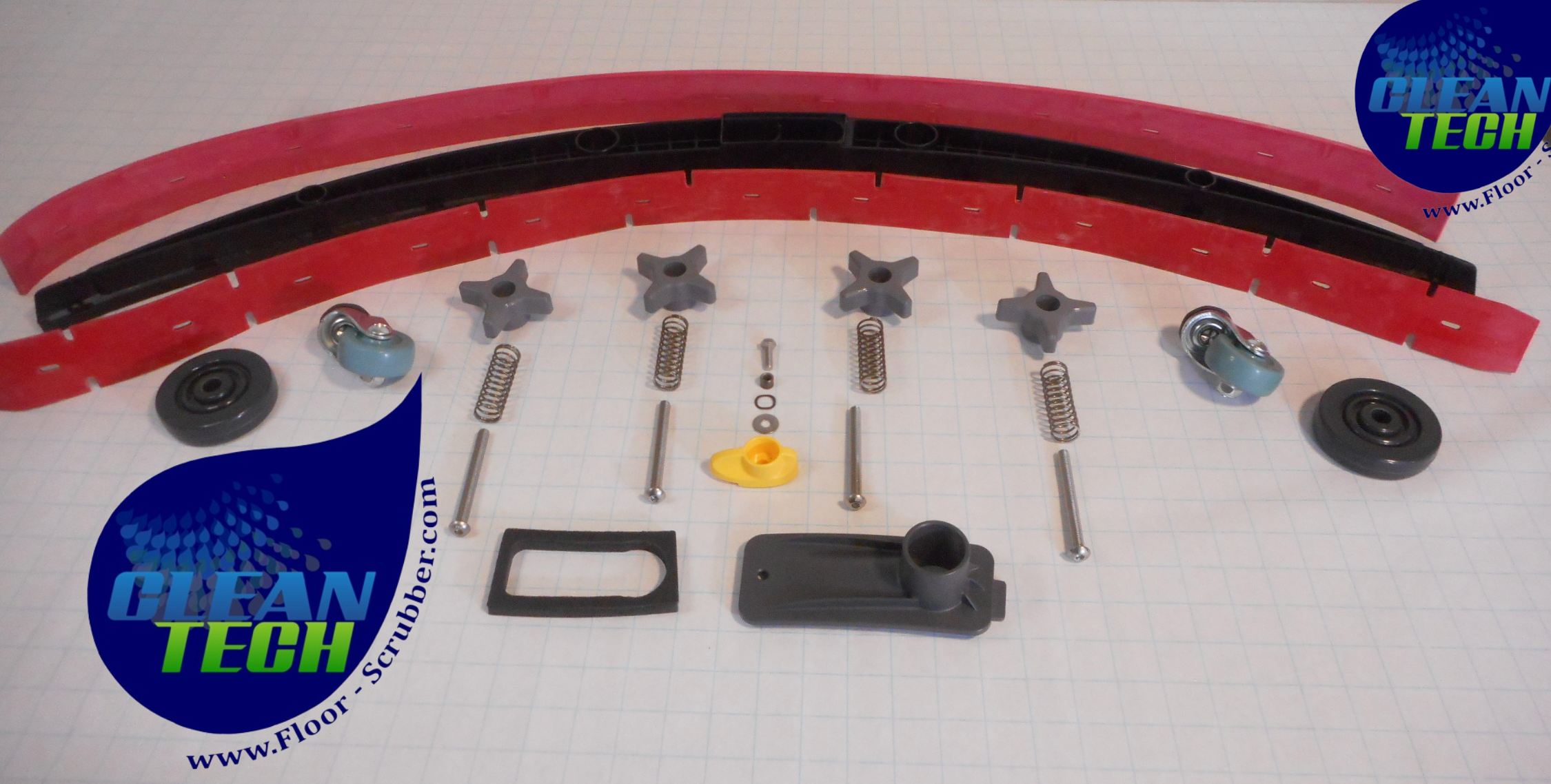

Includes the following:
Squeegee blade set Linatex: 9015740, Inner and Outer: 1232681 1221115
Squeegee Insert/Retainer: 1219405, 4036945
Star Knobs (4): 1074204, 4044825
Bolts M8 X 1.25 X 80 Allen (4): 1255358, 4032161
Roller Guide Wheel, Bumper (2): 222066, 4039789
SQ Caster, Swivel wheel (2): 1006343, 4039297, 4029759
Spring Compression (4): 22290, 4037087
Water Trap Cover: 1209631, 4042359
Water Trap Gasket: 1210756, 4038882
Water Trap Knob: 1222109, 4037486
Hex Bolt M6 X 1.00: 12277, 4034958
Washer, Flat: 01684, 4042901
Washer, Wave- Spring: 140060, 4043787
Sleeve, Bushing: 140154, 4043810

Questions? Call us today 501-844-1811.

We can help out with any questions you may have.

Local Taxes, if applicable, charged upon checkout.

We are committed to providing the best customer satisfaction possible. We will gladly refund or replace any defective item and most non-defective items. However, we reserve the right to charge a restocking fee of up to 15% of the order. We do not pay or reimburse the costs for shipping returns back to our location.
